GreptimeDB Dashboard now ships with built-in dashboards powered by the Perses project. With the GreptimeDB plugin merged into CNCF's official Perses plugins repository, the Perses ecosystem now supports GreptimeDB as a native data source.

Through this deep integration with Perses, GreptimeDB's backend capability as The Single Database for Observability extends all the way to the frontend, giving you a single, unified dashboard view.

What is Perses

If you've used Grafana, Perses will feel familiar: it solves the same class of problem, but takes a cloud-native approach.

Perses is a CNCF Sandbox project, accepted into the CNCF in August 2024. It was originally open-sourced by Amadeus in 2022 under the Apache 2.0 license. In the CNCF observability ecosystem, collection is covered by OpenTelemetry and storage and querying by Prometheus, but visualization long lacked a vendor-neutral standard. That gap is what Perses sets out to fill.

What sets Perses apart from traditional dashboard tools is that it treats dashboards as code (Dashboard-as-Code): dashboard definitions can live in version control and CI/CD, backed by the percli command-line tool and SDKs in both Go and CUE. Perses is also Kubernetes-native, so you can declare dashboards as CRDs and ship them alongside your applications, which fits GitOps workflows naturally. Data sources follow a plugin design: Prometheus, Tempo, Loki, Pyroscope, and others connect through plugins, and you can write your own. The GreptimeDB data source is one of them.

Why GreptimeDB + Perses

1. A unified observability dashboard

GreptimeDB stores and analyzes metrics, logs, and traces in one place. With Perses carrying the dashboards, that unified backend extends to the frontend: you view and analyze multimodal data from a single entry point, which is lighter and more intuitive than juggling several tools.

2. A native SQL query engine that unlocks multimodal data

The GreptimeDB plugin is a standard SQL query engine that lets you explore multimodal data with one language. Whether you're running time-series aggregations on metrics with GreptimeDB's time-window functions or joining across log and trace details, a single SQL plugin covers it.

3. SQL and PromQL, each doing what it does best

In day-to-day dashboard configuration, the GreptimeDB plugin and the native Prometheus plugin divide the work cleanly:

• Metrics go through PromQL: configure a standard Prometheus data source and keep your existing PromQL syntax, reusing familiar cloud-native dashboard habits.
• Logs, traces, and advanced aggregations go through SQL: switch to the GreptimeDB plugin and drill down with SQL and its time-series functions.

---

Capabilities at a glance

Migrating a Grafana Node Exporter dashboard

GreptimeDB is natively compatible with the Prometheus ecosystem: it supports high-throughput ingestion of Prometheus metrics and full PromQL querying. Thanks to this backend compatibility, and with the migration tool Perses provides, you can import a Grafana JSON config built on PromQL in one step. After import, dashboard variables, gauges, line charts, and the rest carry over seamlessly.

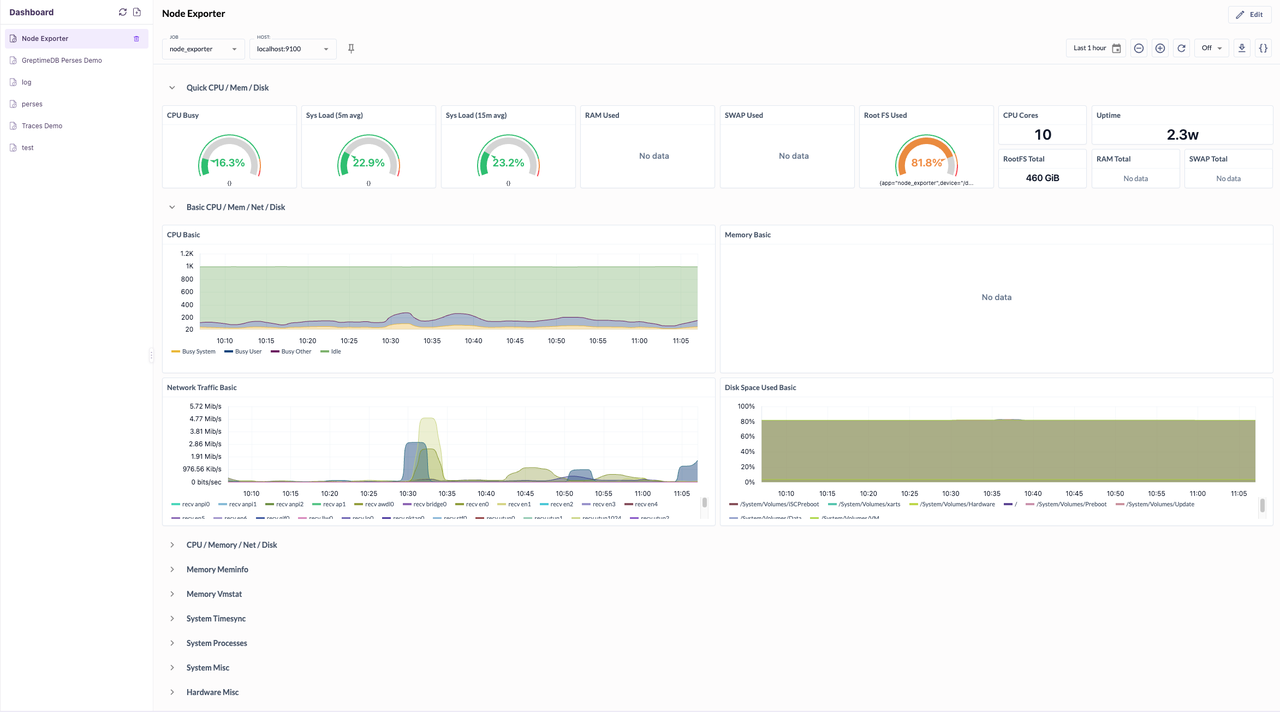

A Grafana Node Exporter dashboard imported into Perses

---

Time-series charts with SQL

To draw a line chart, use ${__from} and ${__to} to wire into the dashboard's time range (top-right corner):

SELECT time_window, loc,
    max(max_temp) RANGE '1m' FILL LINEAR AS max_temp
  FROM public.temp_alerts
  WHERE time_window >= to_timestamp_millis(${__from})
    AND time_window <= to_timestamp_millis(${__to})
  ALIGN '30s' BY (loc)
  ORDER BY time_window ASC
  LIMIT 2000;

The built-in ${__from} and ${__to} variables pass millisecond timestamps, which pair with to_timestamp_millis() to match GreptimeDB's timestamp queries.

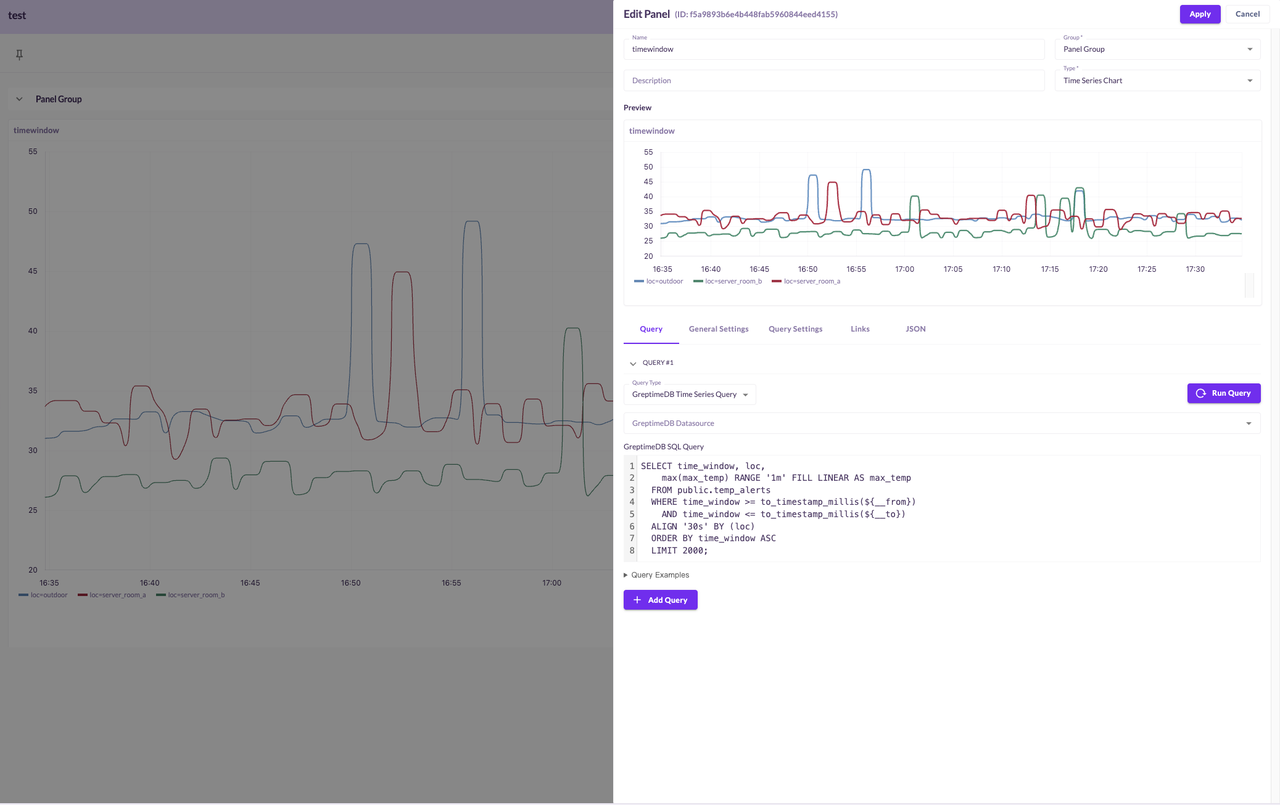

A CPU time-series line chart built with SQL

---

SQL tables

To see the latest records, switch the panel to Table while keeping the query type unchanged, then point the time column at your table's own time column:

SELECT *
FROM public."penguins_size"
WHERE "greptime_timestamp" >= to_timestamp_millis(${__from})
  AND "greptime_timestamp" <= to_timestamp_millis(${__to})
ORDER BY "greptime_timestamp" DESC
LIMIT 100;

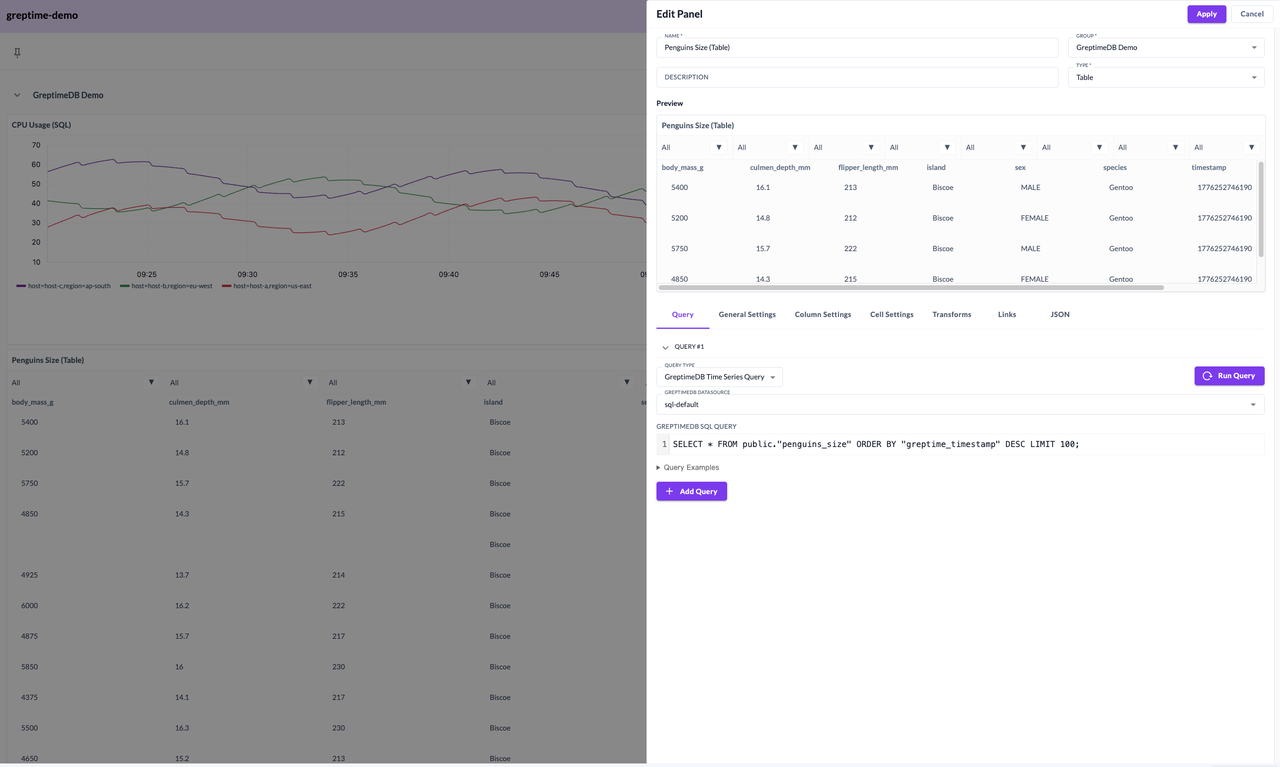

A SQL table panel showing the latest records

---

Logs panel

Use a Logs Table panel with a GreptimeDB Log Query.

Once you've set up variables for search, category, and so on at the top, reference custom variables like $search, $log_category, and $max_rows in your SQL, and limit the time window with ${__from} / ${__to}:

SELECT ts, line_no, elapsed_s, step_s, content, message
FROM public.logtest
WHERE ts >= to_timestamp_millis(${__from})
  AND ts <= to_timestamp_millis(${__to})
  AND (content LIKE '%$search%' OR message LIKE '%$search%')
LIMIT $max_rows;

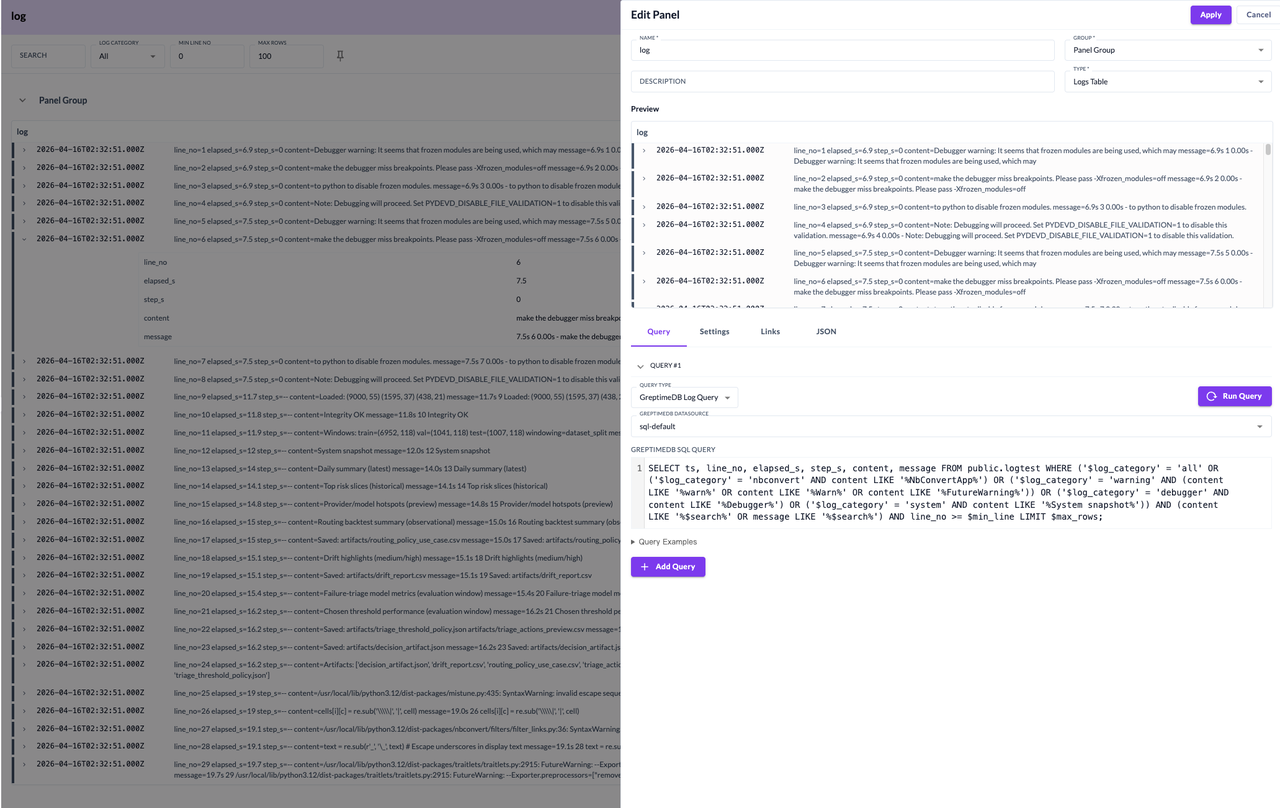

A Logs Table panel driven by a GreptimeDB Log Query

💡 Tip: For one-off troubleshooting, the Logs query view is faster. For a search view you check every day, save it into a Visualization dashboard.

---

Trace list

Choose a Trace Table panel with a GreptimeDB Trace Query. A single, simple SQL statement lists the root spans of your distributed calls, each one a complete trace:

SELECT * FROM "public"."web_trace_demo" WHERE "parent_span_id" IS NULL

Click any trace in the list, and the Gantt detail view opens on the right automatically. No extra drill-down query or sub-panel required.

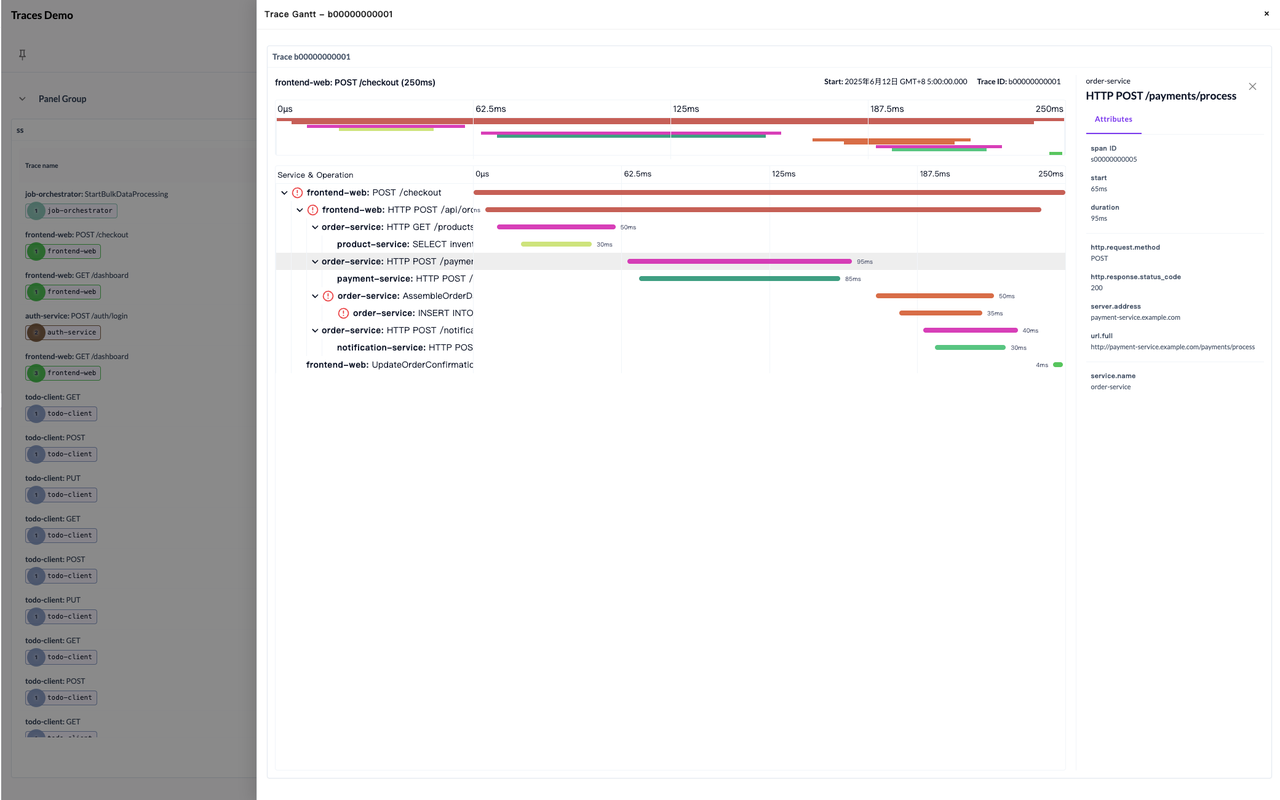

A Trace Table with the Gantt detail view open on the right

Summary

GreptimeDB stores metrics, logs, and traces together; Perses visualizes all of it in one place. Combine the two and you no longer maintain a sprawl of separate databases and dashboard tools: write your query (SQL or PromQL) in Greptime Dashboard's Visualization view, pick a panel, and watch metrics, logs, and traces from one spot.

---

Further reading: Perses migration guide
